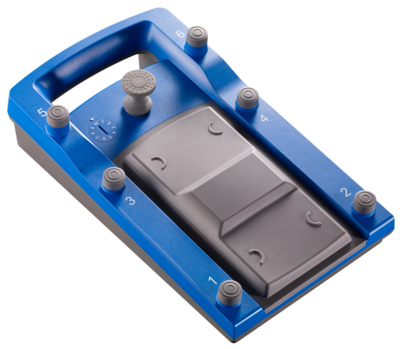

Foot switch for surgical microscopes
MFS MICROSCOPE-MED
Zoom and focus functions with central foot rest
Joystick for positioning microscope
6 additional buttons with programmable functions
Very easy to clean
Wireless signal transmission via steute wireless SW2.4LE-MED (optional)
Notes
Photo shows optional accessories
Configuration options
Technical data
General technical data
Applied standards
IEC 60601-1, ANSI/AAMI ES60601-1, IEC 60529
Enclosure
thermoplastic, shockproof
Rocker switch
robust, operating theatre approved silicone
Actuator
robust, operating theatre approved silicone
Degree of protection
IPX8 (IEC/EN 60529)
Switching system
rocker switch: 4 switching functions
push button: 6 switching functions
joystick: 4 switching functions (diagonal switching)
Mechanical life
> 250 000 operations
Connection
2 m cable, other lengths optionally available
Switching voltage
max. 25 VAC / 60 VDC
Switch-on current
max. 1 A
Switching capacity
max. 20 VA
