Medical rocker foot switch

WF-MED GP14


  • Rocker switch for rapid switching between two functions

  • Robust powder-coated die-cast zinc foot control

  • Aluminium housing for increased weight

  • Waterproof: IPX8 (IEC 60529)

  • Additional push button for extra functionality (optional)

  • Digital or analogue output signals available

Notes

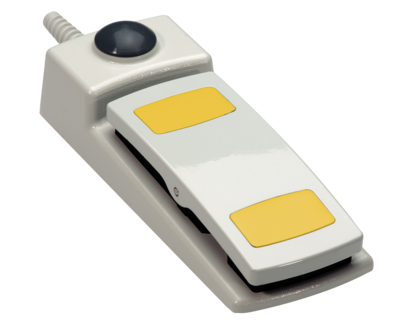

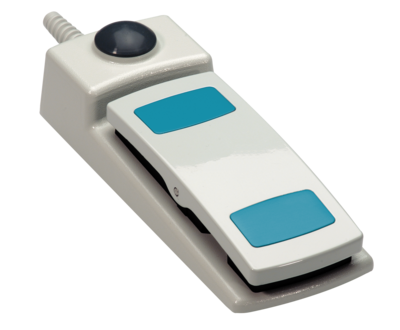

  • Photo shows optional accessories

Configuration options

Technical data

Applied standards

IEC 60601-1, ANSI/AAMI ES60601-1, IEC 60529

Pedal

GD-Zn alloy, RAL 7035

Pedal housing

thermoplastic, shockproof, self-extinguishing UL 94 V-0

Housing

GK-Al alloy, RAL 7035

Actuator

robust, operating theatre approved silicone

Degree of protection

IPX8 (IEC/EN 60529)

Switching elements

reed contact / micro switch / Hall sensor

Switching system

1 – 2 NO contacts / 1 change-over / analogue output 0 … 10 VDC, 0 … 20 mA, 4 … 20 mA

Mechanical life

> 1 million operations

Connection

2 m cable, other lengths optionally available

Switching voltage

max. 25 VAC / 60 VDC

Switch-on current

max. 1 A

Switching capacity

Reed contacts: max. 20 VA, micro switch: max. 30 VA

Supply voltage Hall sensor

15 … 30 VDC / max. 25 mA
