Medical wireless foot switch
MKF 4 SW2.4LE-MED GP411
Wireless signal transmission per steute wireless low energy
Power supply via 3 commercially available batteries (AA)
Typical battery life: 230 days
Battery compartment can be opened by hand
Additional push buttons for extra functionality (optional)
Collapsible stainless steel carrying handle (optional)

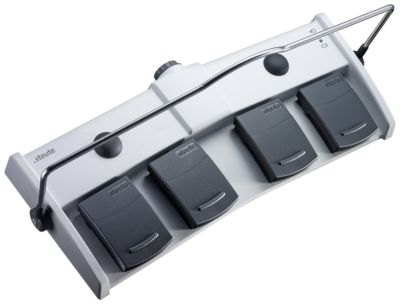

Photo shows optional accessories.
Configuration options
Technical data
General technical data
- Applied standards
- IEC 60601-1, ANSI/AAMI ES60601-1, IEC 62304, IEC 60529
- Pedal
- thermoplastic, shockproof, self-extinguishing UL 94 V-0/V-2
- Housing
- thermoplastic, shockproof, self-extinguishing UL 94 V-0, Pantone Cool Gray 1C
- Antenna
- internal antenna
- Degree of protection
- IPX8 (IEC/EN 60529)
- Voltage source
- 3 commercially available batteries, type AA
- Switching elements
- reed contact / micro switch / Hall sensor
- Switching system
- 1 – 2 NO contacts
- Mechanical life
- > 1 million operations
- Conformity
- Global: cCSAus IEC 60601-1, -1-2, -2-22, -2-43
Europe: CE EN 300 328; EN 62479; EN 301 489-1; EN 62368-1
USA: FCC Title 47 CFR, Part 15
Canada: IC RSS-247, Issue 1
Japan: ARIB STD-T66
Wireless technology
- Frequency
- 2.4 - 2.4835 GHz
- Channel bandwidth
- 2 MHz
- Modulation type
- GFSK, adaptive frequency hopping of 40 channels
- Output power
- 3 dBm - 7 dBm
- Input sensitivity
- -93 dBm
- HF data rate
- 1 Mbps
- Interface data rate
- 115.2 kBd (UART)
- Wireless range
- 10 m (typical)
Note
Since this article is part of a medical product, it can only be validated in combination with the overall system. Proof of conformity to the Medical Device Regulation (MDR 2017/745) can therefore only be handled by the customer marketing the system. At the request of the customer, steute can affix a CE mark with the 4-digit number of the appropriate notified body.
