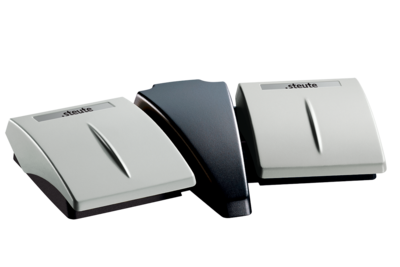

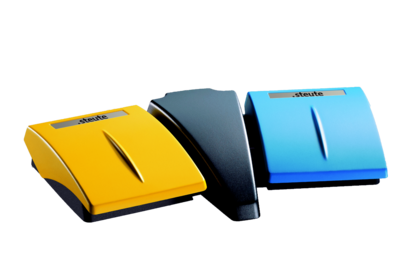

2-pedal medical foot switch
VKF 2-MED
Affordable
High mechanical stability
Compact design
Up to 2 switching functions per pedal
Normally open or changeover contacts
Stainless steel carrying handle (optional)
Waterproof: IPX8 (IEC 60529)
Notes
Photo shows optional accessories.
Configuration options
Technical data
General technical data
- Applied standards
- IEC 60601-1
- Pedal
- thermoplastic, shockproof, self-extinguishing UL 94 V-2
- Housing
- thermoplastic, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IPX8 (IEC/EN 60529)
- Switching elements
- micro switch
- Mechanical life
- > 200 000 operations
- Connection
- 3 m cable, other lengths optionally available
- Switching voltage
- max. 25 VAC / 60 VDC
- Switch-on current
- max. 1 A
- Switching capacity
- max. 30 VA
