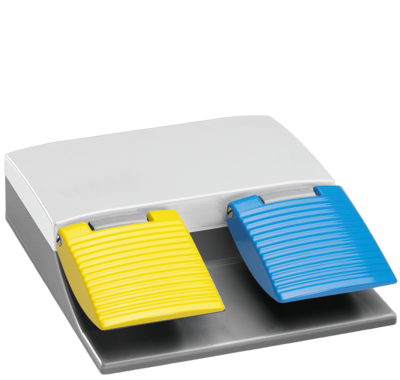

2-pedal medical foot switch
MGF 2-MED
Robust die-cast aluminium foot control
Powder coating
Additional push buttons for extra functionality (optional)
Collapsible stainless steel carrying handle (optional)
Digital or analogue output signals available – variable resistance
Waterproof: IPX8 (IEC 60529)
Multiple colours available - feel free to contact us!
Notes

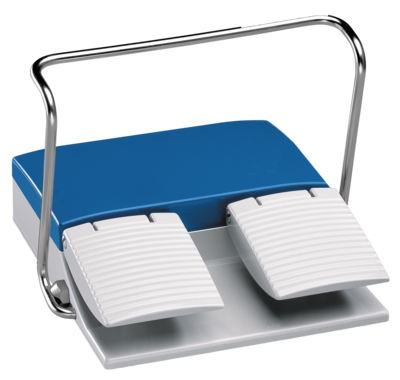

Photo shows optional accessories.
Configuration options
Technical data
General technical data
- Applied standards
- IEC 60601-1, ANSI/AAMI ES60601-1, IEC 60529
- Enclosure
- GD-Al alloy, RAL 7035
- Pedal
- GD-Al alloy, enamel finish, RAL 7035
- Degree of protection
- IPX8 (IEC/EN 60529)
- Switching system
- switch insert: 1 NC/1 NO, 2 NC/2 NO
microswitch: 1 change-over contact
potentiometer: 1, 2, 5, 10 kOhm
Hall sensor: HS 0-10 V, 0(4)-20 mA
- Mechanical life
- > 1 million operations
- Connection
- 2 m cable, other lengths optionally available
- Switching voltage
- max. 25 VAC / 60 VDC
- Switch-on current
- max. 1 A
- Switching capacity
- max. 30 VA
- Supply voltage Hall sensor
- 15 … 30 VDC / max. 25 mA
