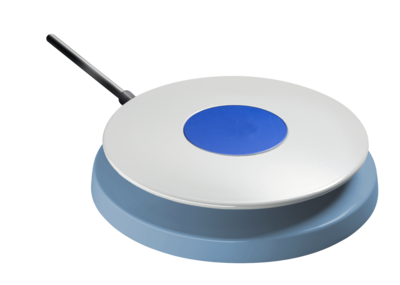

1-pedal medical foot switch
RF-MED-2G
Robust die-cast aluminium foot control
Operable from all sides
Powder coating
Waterproof: IPX8 (IEC 60529)
Digital output signals

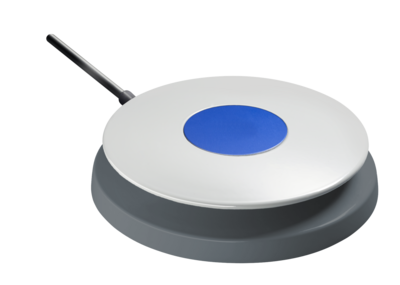

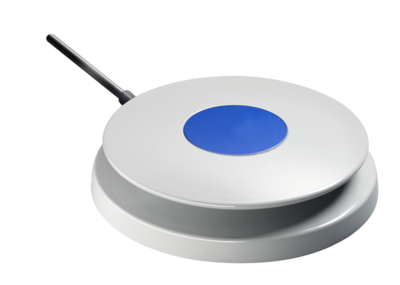

Multiple colours available - feel free to contact us!
Configuration options
Technical data
General technical data
- Applied standards
- IEC 60601-1, ANSI/AAMI ES60601-1, IEC 60529
- Switching plate
- GD-Al alloy, RAL 7035
- Enclosure
- GD-Al alloy, RAL 7035
- Degree of protection
- IPX8 (IEC/EN 60529)
- Switching elements
- micro switch
- Switching system
- 1 – 2 NO contacts / 1 - 2 change-over contacts
- Mechanical life
- > 1 million operations
- Connection
- 2 m cable, other lengths optionally available
- Switching voltage
- max. 25 VAC / 60 VDC
- Switch-on current
- max. 1 A
- Switching capacity
- max. 30 VA
